Hangzhou Jinghu Glass Co., Ltd. is a leading professional supplier of high-quality glass and mirror products in China.

Toughened Glass Panel
Toughened glass, also known as tempered glass, is a type of safety glass that has been specially treated to increase its strength. The process involves heating the glass to a high temperature (around 620°C to 650°C) and then rapidly
read more
Tempered Safety Glass
It is a type of glass that is specially designed to be stronger, more durable, and less likely to cause injury when broken.
read more
Clear Tempered Glass
Clear Tempered Glass is a type of glass that is produced through the process, which is the most common method for making flat glass today.
read more
Quality Tempered Glass
It refers to glass that has undergone a special heat treatment process to increase its strength and durability.
read more
Thick Tempered Glass
It is a flat, transparent or translucent piece of glass that is designed to sit on top of a table frame or base, often used as a functional and decorative surface.
read more
Tinted Tempered Glass
Tinted tempered glass refers to glass that has been treated or coated with a layer of film or material that reduces the amount of light passing through it, giving it a darker or colored appearance.
read more

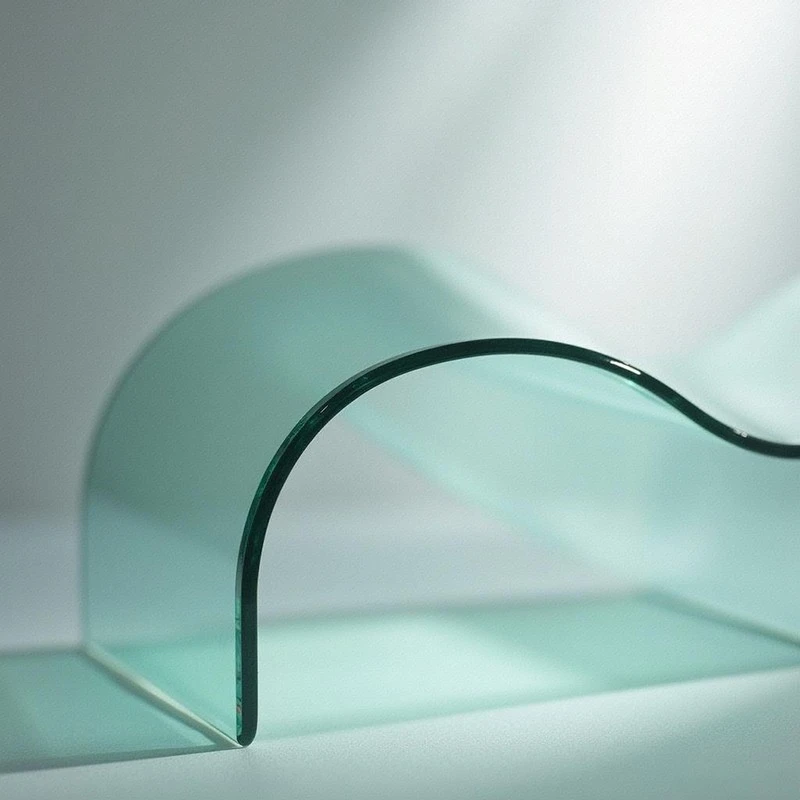

Curved Tempered Glass
It refers to glass that has been both tempered (heat-treated to increase its strength and durability) and bent or curved into a specific shape.
read more
Tempered Laminated Glass
Tempered laminated glass is a type of safety glass that combines two processes: tempering and laminating.
read more
Frosted Tempered Glass
Frosted Tempered Glass refers to glass that has been treated with an acid or other abrasive material to create a design, pattern, or texture on its surface.
read more
Tempered Glass Sheet
It refers to glass that has a textured or patterned surface, created either through a manufacturing process or post-production treatment. It is a versatile material used primarily for its aesthetic appeal, as well as its functional
read more

Why Choose Us

Our Produc

Our primary product range includes: Bathroom Mirrors, LED lighted Mirrors, Shower Enclosures, Mirror Cabinets, Tempered Glass and so on.

Our Serve

We proudly serve over 68 countries worldwide, partnering with renowned large-scale supermarkets, hotels,and construction projects.

Our Team

Our team is dedicated to ensuring the highest quality products and exceptional service to meet diverse customer demands.

7 Advantages Of Tempered Glass

It's Safer
The biggest advantage of tempered glass over annealed or “ordinary” glass is that it was designed for safety. Unlike annealed glass, which breaks into large and dangerous shards, tempered glass disintegrates into small granular chunks that are relatively harmless.

It's Tougher
The thermal tempering process used to manufacture tempered glass makes it much stronger than ordinary glass. Tempered glass can stand up to strong winds, direct impact from blows and bumps, and minor explosions.

It's Heat-resistant
Tempered glass can resist temperatures of up to 470 degrees Fahrenheit. This property makes tempered glass ideal for use in kitchen appliances and in areas like the bathroom, where it will likely be in contact with the heat on a regular basis.

It's Crystal Clear
While the tempering process makes tempered glass super tough, it doesn't affect the clarity of the glass. Tempered glass is crystal clear and transparent, which makes it useful in windows, display cases, and glass doors.

It's versatile

Tempered glass can be used practically anywhere glass is needed. It makes for an attractive and sturdy frameless shower door, a fully transparent smartphone screen protector, and a seamless stovetop base

It doesn't scratch easily

The manufacturing process that makes tempered glass thermally tough also makes it scratch-resistant. This makes tempered glass an ideal material for glass doors, kitchen appliances, mobile screen protectors, and passenger vehicle windows.

It is available in various designs and patterns

Tempered glass can be clear, frosted, engraved, stained, and patterned. It's available in an array of patterns and designs to suit your needs.

Application of Tempered Glass

Windows

Tempered glass, or some form of safety glass, is recommended in commercial settings and under certain circumstances in residential settings, depending on the size of the window and its proximity to walking surfaces.

Doors

Any swinging, sliding, or bifold door should use tempered glass, regardless of size.

Wet Areas

Glass in wet areas like shower doors in bathrooms and doors and windows around swimming pools and saunas should be made of tempered glass due to the increased risk of falls.

Near Stairs

Building codes require that glass near or adjacent to stairs and glass used for stair rails should use some form of safety glass, like tempered glass. Steps with glass surfaces should also be made using some form of safety glass.

Tempered Glass Properties

Properties	Tempered Glass
Thermal Shock Resistance	Up to 250c
Mechanical Strength	Up to 5x stronger than annealed
Tensile Strength	65 MPa
Bending Strength	120-200 N/mm2
Surface Compression	>95 MPa
Design stress for architectural projects	50 MPa
Fragmentation	Small pebbles
Fabrication	No cutting or drilling after temper
Standard ANSI Z97.1	American National standard for glazing materials used in buildings – safety performance specifications and methods of test.
ASTM C1036	Standard specification for flat glass.
ASTM	Standard specification for heat treated flat glass.
Compliance	Tempered float glass shall comply with ASTM C1048, Type 1, Class 1 (clear), Glass 2 (tinted), Quality Q3, Kind FT. Tempered safety glass products in the US are to comply with CPSC 16 CFR part 1201 for category II materials.

Understanding The Glass Tempering Process

Cutting and Shaping: The glass is first cut to the required size and shape. Any cutting, grinding, or other modifications must be done before the tempering process because once tempered, the glass cannot be altered without shattering.

Heating: The shaped glass is then heated in a tempering furnace to a temperature of approximately 620 to 650 degrees Celsius. This heating phase is crucial as it prepares the glass for the rapid cooling process that follows.

Rapid Cooling: After heating, the glass undergoes a process called quenching. During quenching, the glass is rapidly cooled by blasting it with air from all directions. This rapid cooling process causes the outer surface of the glass to cool and harden quickly, while the interior remains at a higher temperature. As the interior cools, it contracts, creating a balance of compression and tension that gives tempered glass its strength.

Quality Inspection: After the tempering process, the glass is inspected for quality. This includes checking for any imperfections or distortions that may have occurred during tempering. The glass is also tested to ensure it meets the required safety standards.

Our Certificates

FAQ

Q: What is the difference between toughened and tempered glass?

A: Toughened glass and tempered glass refer to the same type of glass. Both terms describe glass that has been heat-treated to increase its strength and safety.

Q: Is tempered glass good for the bathroom?

A: Yes, tempered glass is ideal for bathrooms due to its strength and high temperature resistance. Glass, in general, is moisture-resistant.

Q: What is the difference between tempered glass and regular glass?

A: Tempered glass is significantly stronger than regular glass due to a treatment process that involves heating the glass to extremely high temperatures and then rapidly cooling it.in the unlikely event of breakage, toughened or tempered glass shatters into small, blunt pieces instead of sharp shards averting the risk of injury.

Q: How to tell if the glass is tempered?

A: Look for an etched Saint-Gobain logo and the toughening partner logo to ensure original product and quality.

Q: Can tempered glass be cut?

A: No, glass cannot be cut or drilled upon after it has been tempered. Any cutting, shaping or drilling must be done before the tempering process.

Q: How can I get samples?

A: Yes,we'll make sample according to client's requirement. We offer samples of all our products with thousands of styles and types to choose from.

Q: How about quality control?

A: High quality material;
Professional QC team to ensure the goods quality;
Passed SGS, CE inspection;
Professional packing team to ensure the shipping safety.

Q: Can I add our own logo on the products?

A: That's ok to have your own logo on the products. Please contact with us to make sure the detailed drawing, before placing order.

Q: Can you do EXW, FOB, CIF, DDU, and DDP?

A: Yes, we can do all of them based on your requirements in order to offer the great convenience.

Q: What about the delivery time?

A: In general, the leading time is about 7-10days for sample, 20 to 30 days for bulk.

Q: How about the packing and shipping?

A: We'll arrange the packaging according to the products and clients requirement.

Q: What are your Payment terms?

A: 30% T/T deposit and the balance payment T/T before loading.

Q: How to ensure the service?

A: Professional team provides full range of service for you;
We'll feedback production prograss weekly to customers and fully supervision about quality, delivery time;
Our after-service team is faster, more qualified and more efficient.

Q: What if my products arrives damaged?

A: Firstly, we make sure of packaging that the cargo will arrive without being damaged. In a case that if the goods are damaged upon arrival please take photo and video before unloding them.We will solve it at first time.
